Golf Course Solenoid Valves

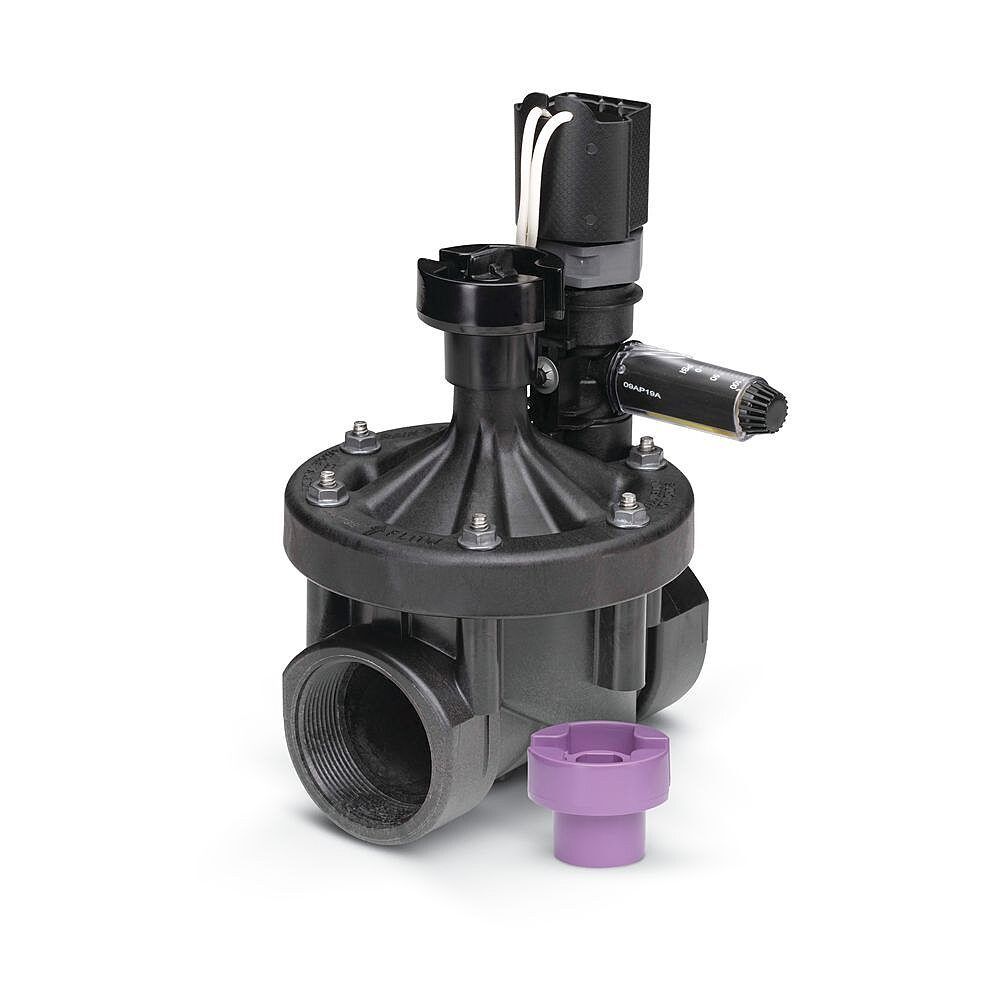

GSV Series Valves

Designed for the Harshest Conditions

Rain Bird® GSV Series Valves deliver the reliable performance you can trust year after year in a full line of plastic and brass options. With precision pressure regulation pre-installed, the GSV Series provides an innovative solution that’s strong enough to weather any storm.


Features

Powerful Surge Resistance

  • 25kV surge protection with the GBS25 Solenoid and 20kV surge protection with ICM.

Adjustable Pressure Regulation

  • Maintain the constant pressure you need between 15 and 100psi (1.04 to 6.90 bar), regardless of incoming pressure fluctuations.

Designed to Resist Chemicals and Reclaimed Water

  • A chlorine-resistant diaphragm delivers increased protection against harsh chemicals.


Specs

Stand Up to the Storm

  • 25kV surge protection with the GBS25 Solenoid and 20kV surge protection with ICM.
  • Built-in filtration with the GBS25 Solenoid for a second level of protection from debris.

Overcome Pressure Fluctuations

  • A pre-installed PRS-DIAL regulates outlet pressure in the field for better distribution uniformity.
  • Improved pressure spike reduction capabilities reduce water hammer.
  • Adjustment knob with an indicator allows fine-tuning in 1/3psi (0.02 bar) increments.

Install Extreme Durability

  • All models feature chlorine-resistant diaphragm for applications using reclaimed water and include an extra purple flow control handle/handle cover to designate non-potable water.
  • Scrubber mechanism encapsulates stainless steel screen to dislodge grit and plant material.
  • Waterproof dial cartridge eliminates fogging and binding.
  • Ergonomic design with snap-tight cover on dial cartridge prevents vandalism.
