Rain Bird Eagle Rotors

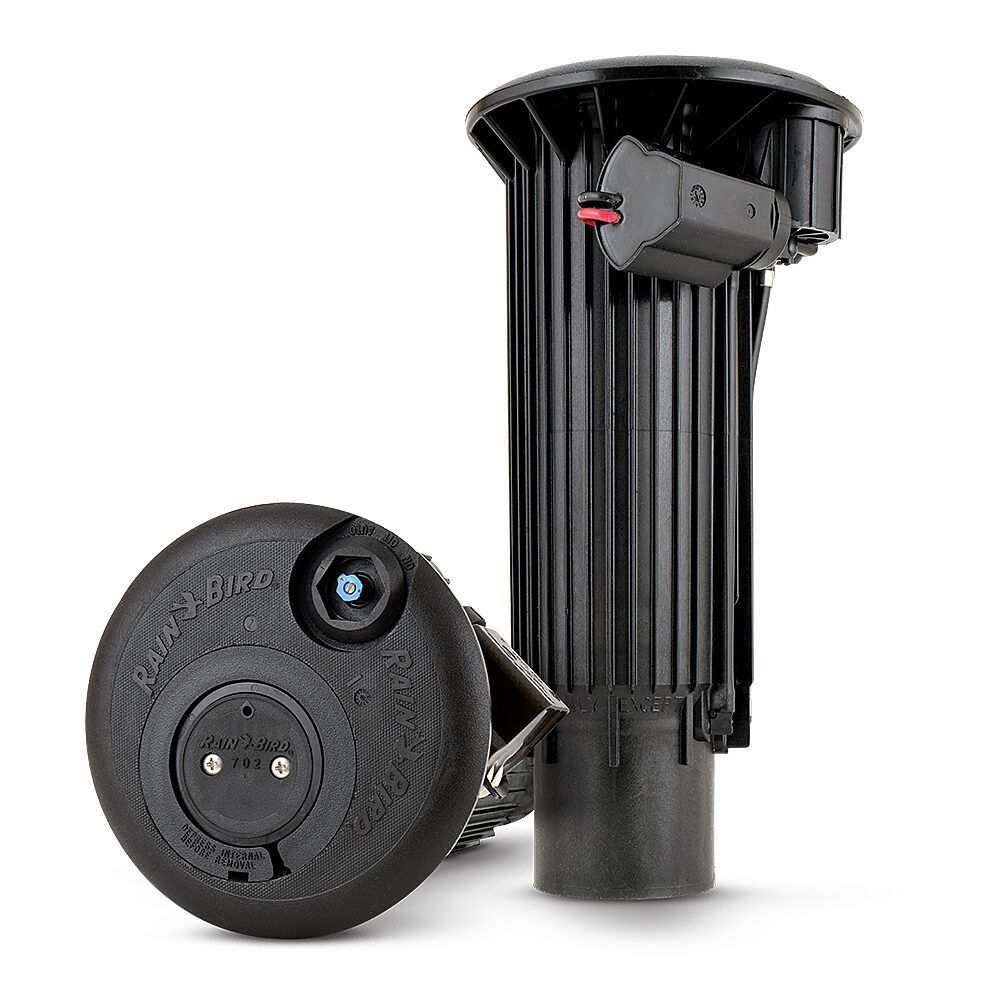

Rain Bird® 702/752 Series

Dependable Coverage Throughout Your Course

Available in IC and electric models, the full-circle 702 Series and full/part-circle 752 Series deliver unmatched flexibility and industry-leading uniformity, making it easier to maintain flawless turf.

  • Make 75% faster nozzle changes, with no need for removing internals.
  • When changing nozzles, the self-adjusting stator automatically adjusts flow to control rotation speed and optimize performance.
  • MemoryArc® saves time and labor by retaining two part-circle arc settings.

Dependable Coverage Throughout Your Course

Available in IC and electric models, the full-circle 702 Series and full/part-circle 752 Series deliver unmatched flexibility and industry-leading uniformity, making it easier to maintain flawless turf.

  • Make 75% faster nozzle changes, with no need for removing internals.
  • When changing nozzles, the self-adjusting stator automatically adjusts flow to control rotation speed and optimize performance.
  • MemoryArc® saves time and labor by retaining two part-circle arc settings.

Features

  • Peace of Mind Today. Continuous Innovation for the Future.

Top Serviceability

  • Pressure regulation and arc adjustments can be made from the top of the rotor, requiring only a common screwdriver.
  • Quick nozzle changes can be completed in the field in just seconds.
  • Internal components can be quickly accessed from the top of the rotor.

Unrivaled Efficiency

  • The 702 Series offers reliable full-circle coverage while the 752 Series delivers ultimate full-circle/part-circle versatility and easy arc adjustments.
  • Self-adjusting stator automatically modifies flow after nozzle changes, saving your crew time.
  • Choose between electric and Integrated Control (IC) models.

Lasting Performance

  • A GBS25 solenoid delivers unrivaled 25kV surge protection and built-in filtration for an extra level of defense from debris.
  • Every model has been exhaustively tested and held to the highest standards in the industry.

Specs

  • Rain Bird golf rotors are designed specifically for large-scale irrigation installations such as golf courses. If your irrigation needs are smaller please contact us for the right solution.


Radius

  • Rain Bird 702 Series: 59' to 77' (18.0 m to 23.5 m)
  • Rain Bird 752 Series: 30' to 84' (9.1 m to 25.6 m)

Flow Rate

  • Rain Bird 702 Series: 16.9 to 42.9 gpm (1.06 to 2.70 l/s); (3.83 to 9.73 m³/h)
  • Rain Bird 752 Series: 6.7 to 47.0 gpm (0.42 to 2.97 l/s); (1.51 to 10.68 m³/h)

Arc

  • Rain Bird 702 Series: Full-circle, 360°
  • Rain Bird 752 Series: Full-circle, 360°, Adjustable 30-345°

Maximum Inlet Pressure

  • 150 psi (10.3 bars)

Pressure Regulation Range

  • 60 to 100 psi (4.1 to 6.9 bars)

Factory Pressure Settings

  • Available in 70 and 80 psi (4.8 and 5.5 bar)

Maximum Stream Height

  • Rain Bird 702/752 Series: Standard: 17' (5.2 m), Wind Tolerant: 10' (3.1 m)
  • Rain Bird 752 Series: Low Angle: 12' (3.7 m)

Nozzle Trajectory

  • Rain Bird 702/752 Series: Standard: 25°, Wind Tolerant: 12°
  • Rain Bird 752 Series: Low Angle Nozzle: 15°

Inlet Threads

  • 1.25" (32 mm) ACME female thread

Rotation Time

  • 180° in ≤ 90 seconds, 80 seconds nominally

Solenoid

  • 24 VAC solenoid power requirement: 0.41 amp inrush current (9.8 VA)
  • 60 cycle: 0.25 amp holding current (6.0 VA)
  • 50 cycle: 0.32 amp holding current (7.7 VA)

Surge Resistance

  • Up to 25KV standard on electric models with the GBS25 solenoid

Top-Serviceable Internal Components

  • Yes

High & Low Flow Valves to Ensure Optimal Performance

  • 752 Series Nozzles 18, 20, 22, 24, and 26 require a low-flow valve which comes preinstalled on rotors during manufacturing.
  • 752 Series Nozzles 28, 32, 36, 40, 44, 48 and 50 require a high-flow valve which comes preinstalled on rotors during manufacturing.

Dimensions

  • Body Height: 12.0" (30.5 cm)
  • Pop-Up Height to Mid-Nozzle: 2.6" (6.6 cm)
  • Top Diameter: 6.25" (15.9 cm)
