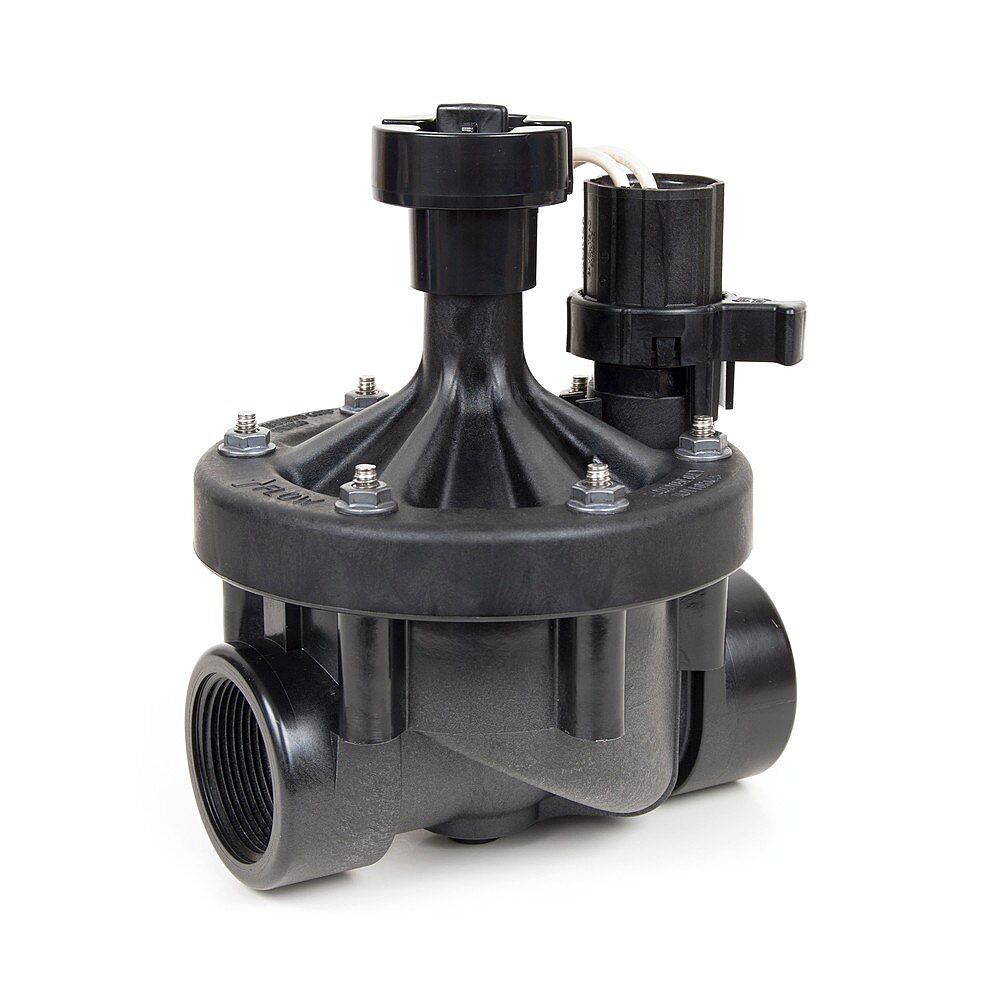

Rain Bird PEB/PESB Series

Best-in-class professional series plastic irrigation valves

The PEB Series is our most durable plastic irrigation valve. This industrial-strength glass-filled nylon globe valve is ideal for commercial irrigation applications.

The PESB series incorporates innovative scrubber technology for reliable performance in dirty water irrigation applications.

Features

  • Durable glass-filled nylon construction with fabric-reinforced rubber diaphragm for long life and reliable performance
  • Globe configuration
  • Normally closed, forward flow design
  • Slow closing to prevent water hammer and subsequent system damage
  • Low flow capability for a wide range of applications
  • One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service
  • Flow control handle adjusts water flows as needed
  • Manual internal bleed manually operates the valve without allowing water into the valve box; allows pressure regulator to be adjusted without turning the valve on at the controller first
  • Manual external bleed permits flushing debris from the system. Recommended for system start up and after repairs
  • Stainless steel studs molded into the body. Bonnet can be attached and removed more easily and more often without damaging threads
  • Nylon scrubber scrapes a stainless steel screen to clean and break down grit and plant material. Prevents debris build-up and clogging (PESB Series only)
  • Five-year trade warranty

Specs

  • Pressure: 20 to 200 psi (1.4 to 13.8 bar)
  • Flow without PRS-D option: 0.25 to 300 GPM (0.06 to 68.1 m3/h; 0.02 to 18.90 l/s)
  • Flow with PRS-D option: 5 to 300 GPM (1.14 to 68.1 m3/h; 0.32 to 18.90 l/s)
  • Temperature: Up to 150° F (66° C)
  • Power: 24VAC 50/60Hz (cycles/sec) solenoid power requirement
  • Inrush current: 0.41A (9.9VA) at 50/60Hz
  • Holding current: 0.14A (3.43VA) at 50/60Hz

Options

  • Accommodates optional, field-installed PRS-D pressure regulating module to ensure optimum sprinkler performance Regulates up to 100 psi (6.9 bar)
  • Accepts latching solenoid for use with Rain Bird battery-operated controllers up to 150 psi (10.35 bar)
  • Compatible with ESP-LXD decoders
  • Optional purple flow control handle for non-potable water applications PEB-NP-HAN1 (1"); PEB-NP-HAN2 (1½" and 2")

Dimensions

  • 100-PEB: 6½" x 4" x 4" – (16.5 cm) x (10.2 cm) x (10.2 cm) H x L x W
  • 150-PEB: 8" x 6" x 6" – (20.3 cm) x (15.2 cm) x (15.2 cm) H x L x W
  • 200-PEB: 8" x 6" x 6" – (20.3 cm) x (15.2 cm) x (15.2 cm) H x L x W
  • 300-PESB: 13 1/4" x 8" x 7" – (34.61 cm) x (20.32 cm) x (17.78 cm) H x L x W
